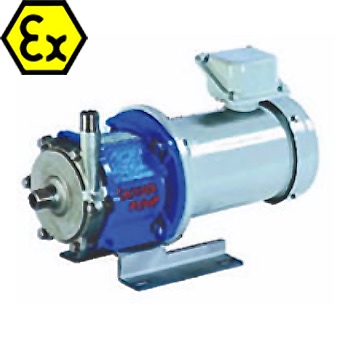

IWAKI MMP Pump

Extensive Hydraulic Performance, Seal-less, Corrosion Resistant, Leak Free

The MMP series is characterized by the heat and pressure resistance. The bearing made of SIC-D supports the reliability and the freedom from maintenance. High and low temperature media can be transfered without any problems.

High Chemical resistance

» Compact, metallic centrifugal magnet drive pumps
» Excellent heat and pressure resistance
» Cover a wide range of motor capacities, up to 15 kW
» Pump materials offer excellent corrosion resistance
» Stainless Steel is standard. Other materials available on request
» Magnet drive is supported by the exclusive SiC-D bearing
» High efficiency and leak free design
» Easy to disassemble and reassemble Industry-leading support by Iwaki Europe

Increased damage prevention

SiC-D bearings can withstand accidental dry run for certain periods, a coefficient of friction 1/4 that of SiC and extremely hard surfaces minimise wear and prolong service life.

Application examples:

  • Chemical processes, laboratory use, test plants and pilot plants.
  • Degreasing, water purification and seawater desalination plants.
  • Food, beverage and pharmaceutical manufacture. Ultrasonic cleaning machines, medical equipment, industrial cleaning devices.

Downloads

Key information

MAX FLOWMAX HEADMAIN MATERIALSINPUTTEMP RANGE
1,600 l/min
80 m
SUS304, SUS316, ALLOY20, Hastelloy-C equivalent
2.2 to 22 kW
-80 to 280°C

Overview

Operating principle

Book

Training

Onsite training

We offer customised training at your offices or onsite. Our goal is to maximise the efficiency for your engineering team during troubleshooting, minimising downtime. We concentrate on installation, product connectivity, and maintenance. For more information, please contact us and outline your team's specific needs.

Virtual training

In a fast-paced environment, we recognise the value of bite-sized training, especially when project teams are dispersed onsite or across different locations. To minimise time away from facilities, we provide intensive product training through video conferencing. For further details, please contact us and outline your team's specific needs.

Request training
