Pyxis corrosion sensors

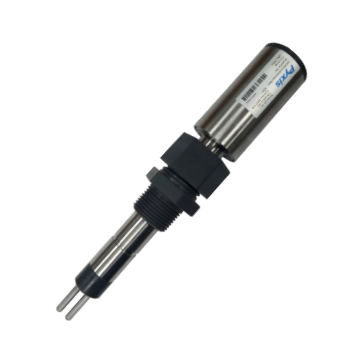

Pyxis CR-200 Corrosion Sensor

A valuable tool that can be easily and affordably deployed to provide both general and localised corrosion measurements

The Pyxis CR-Series corrosion rate sensors are ideal for cooling and process water treatment monitoring where robustness and affordability are a must. The sensors utilise the linear polarisation resistance (LPR) method to produce a raw signal.

Features

  • Anti-Electromagnetic Interface (anti-EMI) design with stainless steel sensor body
  • Modbus support with isolated RS-485 communication
  • 4–20mA output
  • Battery life up to 1 year using ultra-low power design & smart power management
  • Three O-ring grooves positioned on sensor body for insertion depth control
  • Bluetooth® connectivity to uPyxis® App
  • Ultra-low corrosion rate down to 0.001MPY
  • Accurately measure generalised corrosion & localised corrosion rate

CR-200

The CR-200 is a battery powered, portable and Bluetooth enabled LPR corrosion sensor for true wireless connectivity. The CR-200 makes it possible to monitor corrosion at multiple test points, avoiding the complications of running power and signal output wires from the sensor to a controller and/or display unit or data logging unit. The CR-200 sensor can store up to 6-months of data within its PCB that can be wirelessly transferred as a CSV file using the uPyxis APP for Mobile or Desktop devices.

CR-300

The CR-300 is a standalone sensor that can be powered by a 24 VDC power source such as an existing controller, PLC or DCS network. The output data signals for both general and localised corrosion are offered in both 4- 20mA and RS-485 modbus using the provided 8 pin cables with quick adapters. The CR-300 will come with one MA-CR Pyxis Bluetooth adapter allowing the unit to be wirelessly configured and viewed via the uPyxis APP for mobile or desktop devices.

Downloads

Datasheet
Manual

Key information

ModelPowerOutputData storageMax range
CR-200
3.6V
ER26500
battery
Bluetooth 4.1
6
months
10,000
μs/cm
CR-300
24VDC, 2W
4-20 mA
& RS-485
N/A
10,000
μs/cm

Product series

CR-200
CR-300

Typical applications

  • Cooling & process water monitoring
  • Mill supply, once through and closed loop systems
  • Domestic water monitoring
