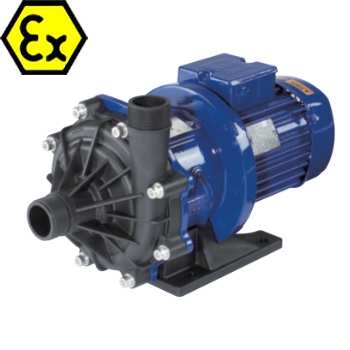

IWAKI MX-F Pump

The MX-F retains excellent durability under abnormal operation such as dry running, cavitation and closed-discharge operation.

The MX-F is an excellent choice for reliably handling a wide range of chemicals in various manufacturing processes. High-grade materials including ETFE are utilized as the main wetted materials.


Self-radiating structure

Through heat-dispersion holes provided in the fixed portions of the impeller and the magnet capsule, the liquid around the spindle and the bearing is forced to circulate so that heat generated by sliding can be reduced effectively. Thus, thermal deformation and melt are pre- vented. (Except MX-F100)


Non-contact structure

By installing the driving magnet and the driven magnet in an inventive way, the movement of the magnet capsule is controlled by magnetic force to prevent the rear thrust and the rear portion of the bearing coming into contact with each other continuously even during dry running. This structure reduces heat generation and secures lubricant routes. (Except MX-F100)

Volute casing divided into two sections

The MX-F series is the first resin magnet pump which uses the pump casing di- vided into the front casing and the rear casing to form a vortex chamber as an ideal form. Therefore, the internal leak phenomenon, which means that the liquid getting out of the impeller returns to the pump casing and is suppressed to a minimum and the liquid is efficiently guided to the discharge port to enhance overall efficiency. (Except MX-F400)

Application examples:

The MX-F series is an excellent choice for reliably handling a wide range of chemicals in various manufacturing processes.

Downloads

Key information

MAX FLOWMAX HEADMAIN MATERIALSINPUTTEMP RANGE
510 l/min
30 m
GFRPP, PTFE, SIC, Alumina Ceramic, HD-Carbon
0.26 to 2.20 kW
0 to 80°C
