Iwaki EWN-R Metering Pump

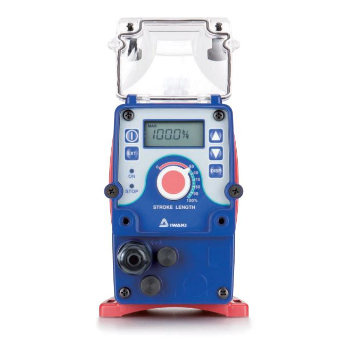

IWAKI EWN-R METERING PUMP

High end diaphragm type electromagnetic metering pump with multifunctional controller & multi voltage power pack

The EWN-R is the diaphragm type electromagnetic metering pump with a built-in multifunctional digital controller. Our technology makes the high-speed operation of 360 spm available. The pump can handle both digital and analogue signal controls in various ways. PVC, GFRPP, PVDF or SUS316 pump heads can be selected. Also, specialist models for particular applications are available. Also, special pump types for particular purposes are lined up. The user-friendly EWN-R will meet a wide variety of demands for chemical feeding.

High resolution

The stroke rate can be set with 1spm increments in between 1 and 360 spm. The stroke length adjustment further assists fine adjustment that the stroke rate adjustment cannot reach. Contentious precise chemical feeding is now available.

A wide variation

In addition to the standard type of PVC, GFRPP, PVDF or SUS316 pump head, B- or C-type drive unit and each diaphragm size, the high compression type for gaseous liquid transfer (sodium hypochlorite, etc), the high pressure type for power injection (boiler compounds, etc) and the high viscosity type for viscous liquid transfer (polymer liquid. etc) are available.

Built-in controller

The EWN-R has the mode of 1:1 operation, multiplier/divider programming control (digital signal) and proportional control (analogue signal) and can dedicate itself to a particular purpose by selecting a suitable mode. Also, the flow rate indication can be converted from spm to l/h or gph.

Downloads

Key information

MAX FLOWMAX HEADMAIN MATERIALSINPUTTEMP RANGE
25.2 L/hour
17 bar
PVC / GFRPP
SUS316 / PVDF
20 to 24 W
-10 to 60°C

Dosing & metering pump overview
